TOSHIBA INVERTER : VF-AS3

ผู้นำเข้าและจำหน่ายโตชิบาอินเวอร์เตอร์
VFAS3
Shihlin Inverter

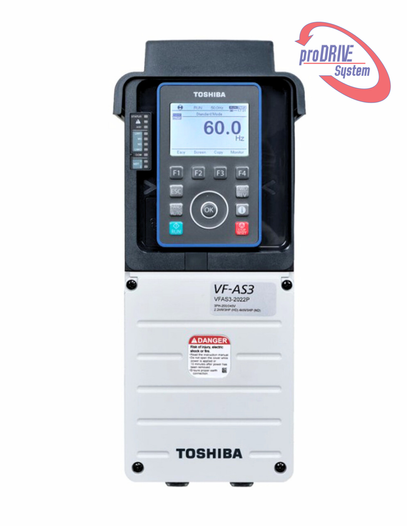

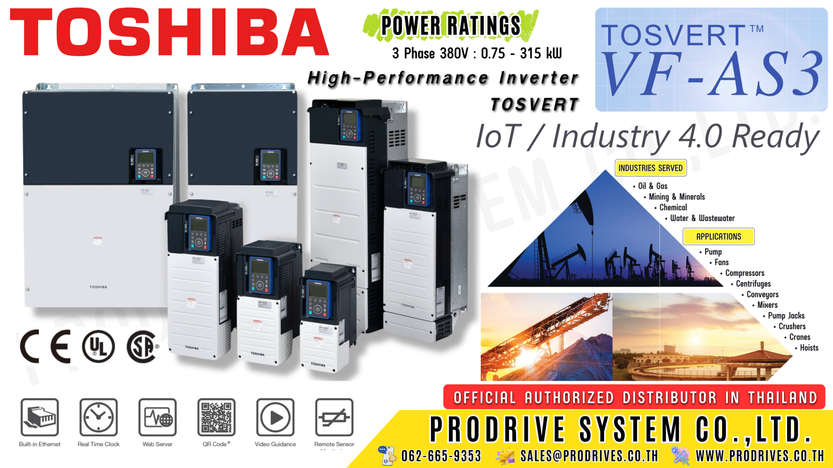

TOSHIBA : VFAS3

IoT/Industry 4.0 Ready

High Performance Drive



Input Voltage / Capacity

3 Phase 380V. : 0.75 - 315 kW

FEATURE คุณสมบัติอินเวอร์เตอร์
  • Built-in Ethernet
  • Real Time Clock
  • Web Server
  • QR Code®
  • Video Guidance
  • Remote Sensor Monitoring
  • Environment free design
  • Safety design meets IEC standard
  • Built-in Position control
  • Four Built-in PID functions
  • Built-in Pump control Maximum Ten pumps
  • PM motor drive (w/, w/o sensor)
Communication Options:
  • Ethernet/IP (Embedded)
  • Modbus TCP (Embedded)
  • PROFINET
  • EtherCAT
  • PROFIBUS-DP
  • DeviceNET
  • CAN open
รายการสินค้า TOSHIBA INVERTER

รายการสินค้า TOSHIBA INVERTER

  • TOSHIBA INVERTER : VFAS3-4007PC
  • TOSHIBA INVERTER : VFAS3-4015PC
  • TOSHIBA INVERTER : VFAS3-4022PC
  • TOSHIBA INVERTER : VFAS3-4037PC
  • TOSHIBA INVERTER : VFAS3-4055PC
  • TOSHIBA INVERTER : VFAS3-4075PC
  • TOSHIBA INVERTER : VFAS3-4110PC
  • TOSHIBA INVERTER : VFAS3-4150PC
  • TOSHIBA INVERTER : VFAS3-4185PC
  • TOSHIBA INVERTER : VFAS3-4220PC
  • TOSHIBA INVERTER : VFAS3-4300PC
  • TOSHIBA INVERTER : VFAS3-4370PC
  • TOSHIBA INVERTER : VFAS3-4450PC
  • TOSHIBA INVERTER : VFAS3-4550PC
  • TOSHIBA INVERTER : VFAS3-4750PC
  • TOSHIBA INVERTER : VFAS3-4900PC
  • TOSHIBA INVERTER : VFAS3-4110KPC
  • TOSHIBA INVERTER : VFAS3-4132KPC
  • TOSHIBA INVERTER : VFAS3-4160KPC
ดาวน์โหลด TOSHIBA MOTOR IE2/IE3
TOSHIBA INVERTER VFAS3
ดาวน์โหลดแคตตาล็อกฉบับเต็ม (PDF)
ดาวน์โหลด
Applications

APPLICATIONS

  • Oil & Gas / Chemical Industrial
  • Fan & Pump / Blower
  • Conveyor
  • Compressor / Centrifuges
  • Mining & Minerals
  • Crushers & Mixers
AS32med

AS31med

AS36med

AS322med

Overview

Advantages

  • High performance, high torque drive with Toshiba’s renowned motor control technology

  • Wide range: 0.4 kW to 315 kW in 380 - 480 V AC class

  • IoT / Industry 4.0 ready for seamless high-speed, real-time, connectivity

  • Instant access to dedicated support from a tablet or smartphone with context-aware QR codes

  • Built-in industrial ethernet and web-server functions for applications in modern industry

  • Ease of installation and set-up

Standard Features

  • Robust constant torque motor control with ample stability margin

  • Simple auto-tune for high dynamic torque capability

  • Sensorless vector control achieves 200% torque from 0.3 Hz

  • 150% overload for 60 seconds or 165% for 2 seconds

  • Available in two forms: IP00 / IP20 / IP3X / IP4X up to 280 / 315 kW and IP54 up to 75 kW / 90 kW.

  • Control algorithms for permanent magnet motors and induction motors

  • Wide speed range - up to 590 Hz

  • Built-in multi-mode position control

Advanced Features

  • Dual port ethernet interface for introducing smart nodes on industrial network

  • Field sensors interface and network monitoring

  • Integrated RTC/calendar and event stamp functions for big data and cloud storage

  • Accessibility and monitoring over tablet / smartphones / PC as well as machine operating conditions via the built-in web server

  • Application-specific functions e.g. sequential logic, timers, comparators as well as load sharing

  • Manual-free service support through drive-generated QR codes which provides immediate access to dedicated web links.

  • Video guidance and web support are available for installation, set-up, and maintenance

  • High-reliability safety function STO (Safe Turn Off)

  • Meets IEC 60721-3-3 dust 3S3 and chemical 3C3 in sizes up to frame A6

  • Communication protocols : Ethernet IP, Modbus TCP, Modbus RTU and Toshiba.

  • Optional: PROFINET, DEVICENET, PROFIBUS_DP, ETHER_CAT, CANOPEN

Applications

  • Pumps

  • Fans & Blowers

  • Conveyors

  • Compressors

  • Mills

  • Crushers & Mixers etc.

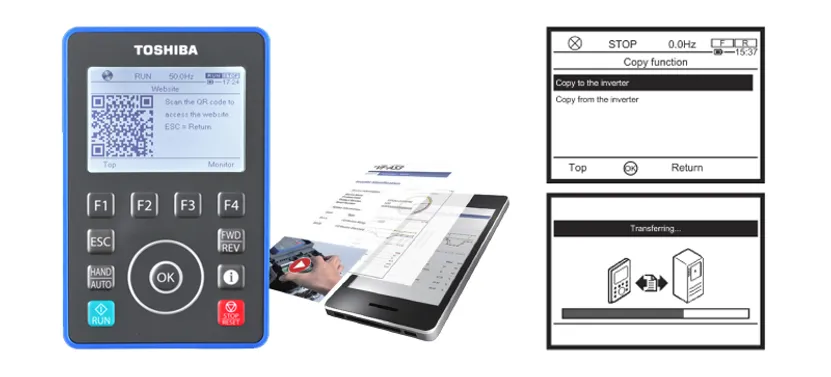

LCD Operation Panel with a Large Screen as a Standard Feature

Large LCD screen
The screen can display various types of information (9 languages).
If a trip occurs, the backlight color changes to red to alert the user.
QR code®/video guidance
The QR code® shown on the screen lets you access video-based operation instructions or a description of the action to take in the event of a trip.
Parameter writer function
This function allows you to save and copy the parameters.

The LCD screen helps with real-time monitoring and provides useful alerts for users.

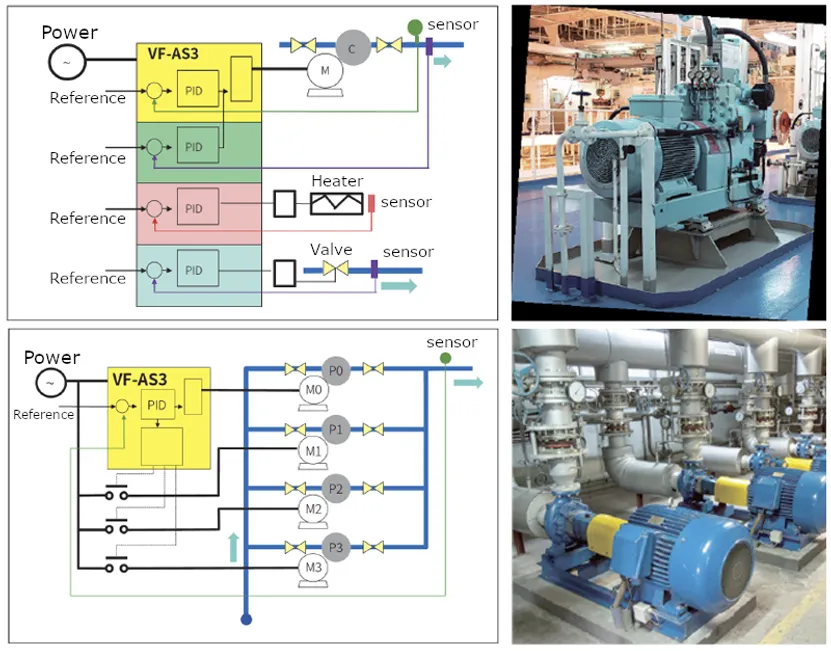

Reducing PLC Leads to Space and Cost Savings

Four-PID control function
The inverter has two PID controls for driving the motor and another two independent PID controls, making it possible to also control the peripheral devices, such as valves and heaters, simultaneously.
If a trip occurs, the backlight color changes to red to alert the user.
Multi-pump function
The QR code® shown on the screen lets you access video-based operation instructions or a description of the action to take in the event of a trip.
Calendar function
The function can control up to 10 pump motors (extension terminal box option) in terms of the flow rate, pressure, keeping the temperature constant, etc.

The integration of multiple functions into a single inverter simplifies system design, reducing costs and improving efficiency.

High-Performance Inverter VF-AS3
High-Performance Inverter VF-AS3 Specifications
ItemVF-AS3
Applicable Motor (HD rating)3-phase 240V input: 0.4 to 55kW
3-phase 480V input: 0.4 to 280kW
3-phase 500V input: 1.5 to 55kW
3-phase 600V input: 2.0 to 75HP
3-phase 690V input: 2.2 to 75kW
3-phase 480V (IP55): 0.4 to 75kW
Applicable Motor (ND rating)3-phase 240V input: 0.75 to 75kW
3-phase 480V input: 0.75 to 315kW
3-phase 500V input: 2.2 to 75kW
3-phase 600V input: 3.0 to 100HP
3-phase 690V input: 3.0 to 90kW
3-phase 480V (IP55): 0.75 to 90kW
Overload Current RatingHD rating: 150% - 1 minute
ND rating: 120% - 1 minute
Dynamic Braking CircuitEmbedded / option *A
Power Supply (Voltage - Frequency)3-phase 240V: 200-240V, 50/60Hz
3-phase 480V: 380-480V, 50/60Hz
3-phase 500V: 500-690V, 50/60Hz
3-phase 600V: 500-600V, 50/60Hz
3-phase 690V: 500-690V, 50/60Hz
Allowable FluctuationVoltage: -15%, +10%
Frequency: ±5%
Degree of Protection (IEC60529)IP20 / IP00 / IP55 *C
Cooling MethodForced air-cooled
EMC Filter (IEC61800-3)Embedded (400V, 500/600/690V input model)
DC ReactorEmbedded / attached DC reactor *B
Control SpecificationsOutput Frequency: 0.01 to 590Hz
Minimum setting steps: 11 bits
Frequency Accuracy: Analog +/-0.2%, Digital +/-0.01% +/-0.022Hz
V/f characteristics: V/f constant, Variable torque, Automatic torque boost, Sensorless vector control, Energy savings, PM motor control, PG feedback control
Interface SpecificationsDigital Input: 14 (6: option)
Digital Output: 3 (2: option)
Pulse train frequency input: 2
Pulse train frequency output: 1
Relay Output: 1c, 5A (3A option)
Analogue Input: 5 (2: option)
Analogue Output: 2
PTC Input: 3 (1: PTC/AI, 2: option)
Control Power SupplyOutput: 10Vdc - 10mA / 24Vdc - 200mA
Input: 24Vdc - 1A
Functional SafetySafe Torque Off comply with IEC61800-5-2 (Dual port)
CommunicationEmbedded: RS485 (2 channel, Modbus RTU), Ethernet (Dual port, EtherNet/IP, Modbus TCP)
Option: DeviceNet, PROFIBUS DP, EtherCAT, PROFINET, CANopen
EnvironmentAmbient Temperature: -10 to +60°C *1
Storage Temperature: -25 to +70°C
Relative Humidity: 5 to 95% (non-condensing)
Altitude: 4800m or less *2*3
Vibration: 5.9m/s² (0.6G) or less (10 to 55Hz) *4
