NIDEC LEROY-SOMER MOTOR
มอเตอร์ประสิทธิภาพสูง

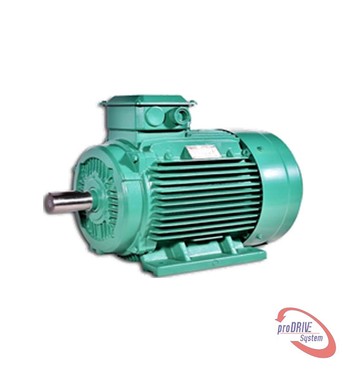

OptiMity 3-phase induction motors
IE2 High Efficiency
Power : 0.75 – 355 kW
Frame Size : 80-355 mm
IP : 55 Insulation Class F
| Power | Frame Size | Pole | IP | Efficiency | Ins. Class | Temp. | Torque | Voltage/ Frequency |
| 0.75-355kW 0.55-355kW 0.37-250kW | 80 mm - 355 mm | 2 4 6 | 55 | IE2 IE3 | F | B | 2.5 N.m – 3023 N.m | 380V 400V |
Standard Specification IE2&IE3 Motor
| Voltage Frequency | For Frame size 112M and Less : 220/380-50Hz (Above 132S-355 : 380/660V-50Hz.) |
| Enclosuer | Total Enclosed Fan-Cooled Foot Mounted IM B3 and Flanged Mounted IM B5( Non-Explosion Proof ) |
| Degree of Protection | IP. 55 |
| Insulation Class | Class F |
| Time Rating | S1 (Continuous) |
| Direction of Rotation | CCW (Counter Clockwise) viewed from shaft-end side |
| Frame material | Frame size 80M to 160L Aluminum Frame size 180M - 355L : Cast Iron |
| Ambient Condition | Ambient Temperation -15 - 40'C Ambient Humidity 90% or Less Above Sea Level : 1000m or Less Environment : No burstion erosive gas or vapor |
| Coating Colour | RAL6000 |
| Standard | IEC 60034-7 |
| Lead Wire Connection | 6 lead wires with Terminal block |
| OPTA-90S-4 1.1kW 4Pole B35 |
| OPTA-90L-4 1.5kW 4Pole B3 |
| OPTA-100L2-4 3kW 4Pole B35 |
| OPTA-132M-4 7.5kW 4Pole B3 |
| OPTA-160L-4 15kW 4Pole B3 |
| OPT-180M-4 18.5kW 4Pole B3 |
| OPT-180L-4 22kW 4Pole B3 |
| OPT-200L-4 30kW 4Pole B3 |
| OPT-225S-4 37kW 4Pole B3 |
| OPT-225M-4 45kW 4Pole B3 |
| OPT-250M-4P 55kW 4Pole B3 |
| OPT-280M-4P 90kW 4Pole B3 |
| OPTA-80M2-4 0.75kW 4Pole B5 |
| OPTA-112M-4 4kW 4Pole B5 |
